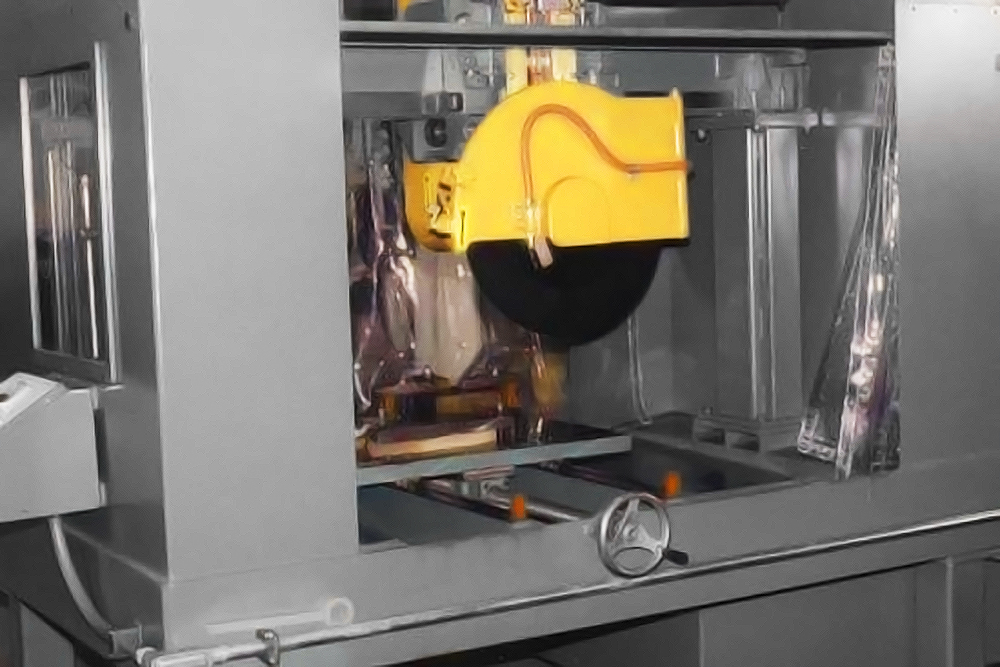

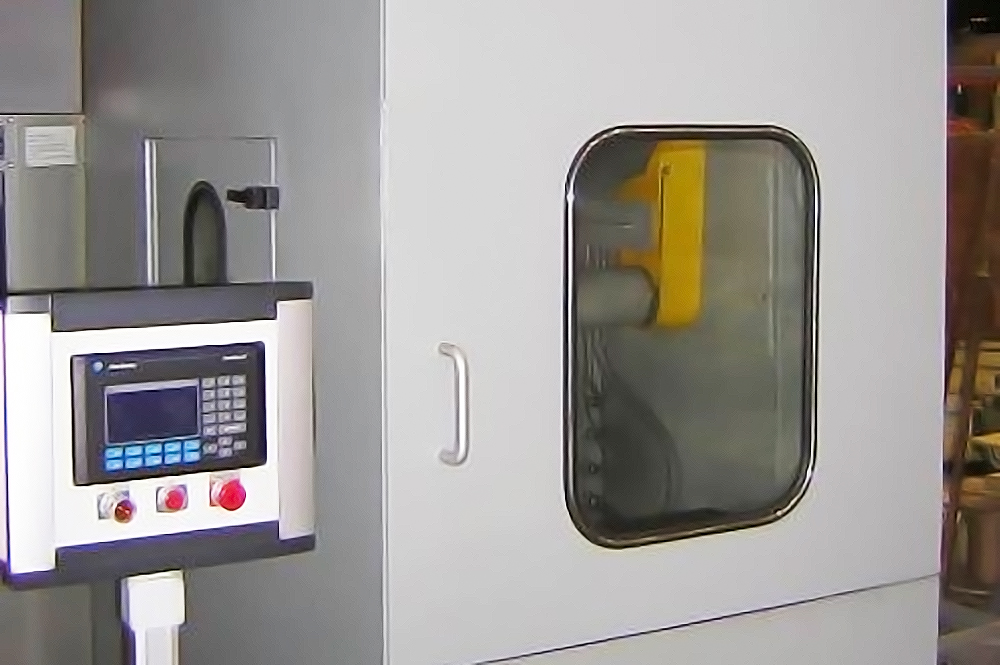

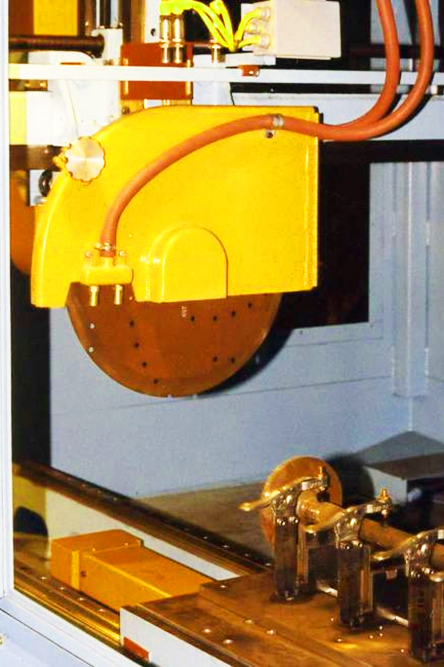

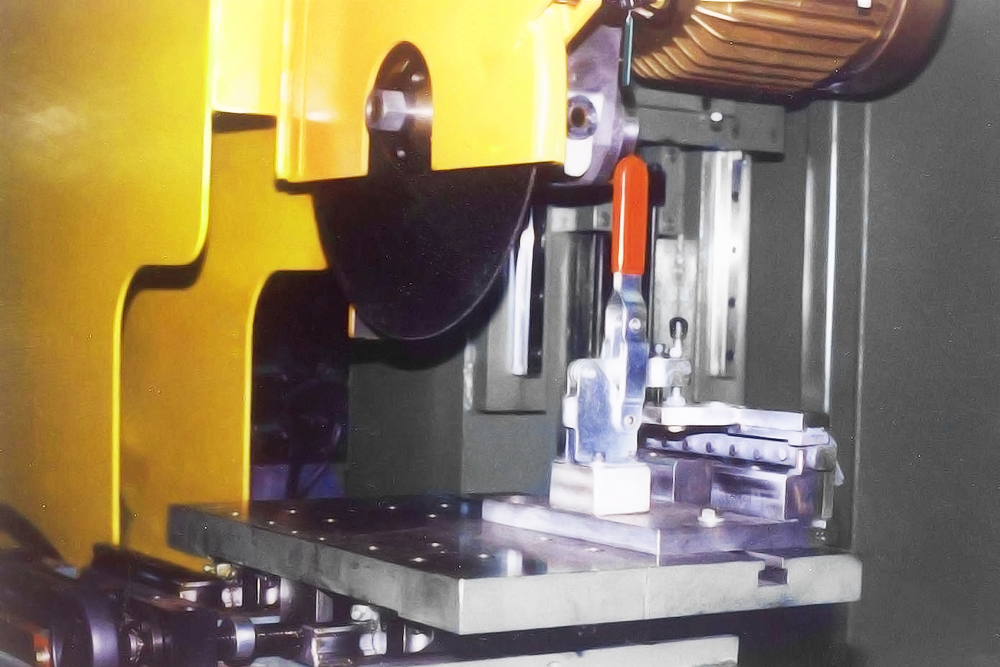

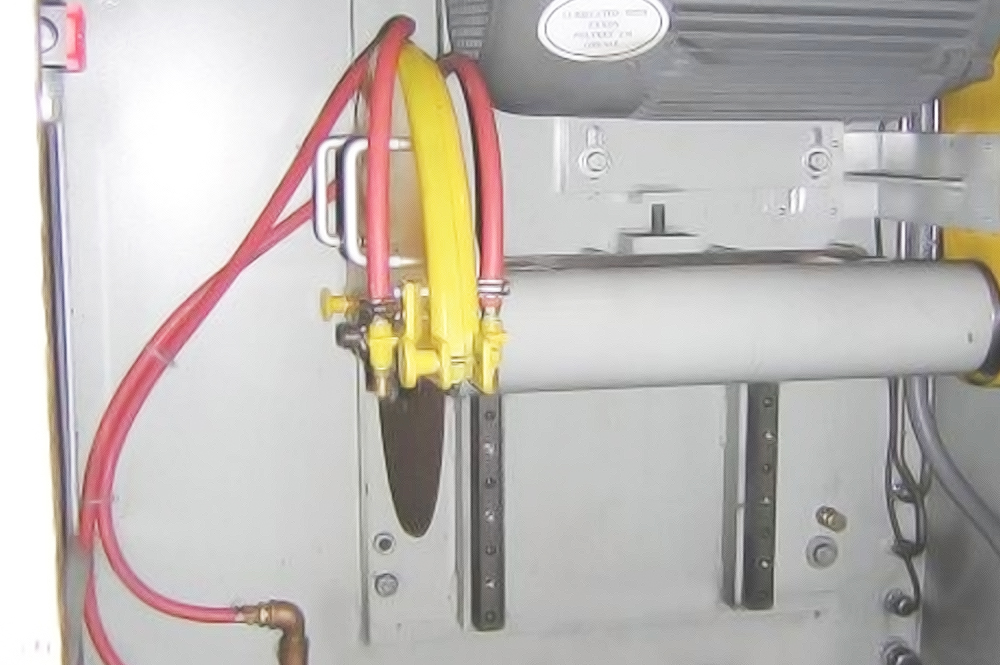

The Lab Saw (or Metallurgical Saw), which is part of the Savage Saw product line, is Thermatool’s solution for companies looking to cut lab samples within a production environment, or with large or irregular work pieces. This Series will precision cut up to an 8″ (200mm) high by 24″ (600mm) long work piece, with the saw cut having a machine like finish with no structural damage to the surface, and do all this in less than 5 minutes for the largest piece. Which is at least 10 times faster than the lab saw available today. These machines are typically used for cutting automotive parts for hardness testing or for reducing large cross sections from processed metals for metallurgical analysis. With Thermatool’s robust designs these saws are able to handle any kind of workload possible, minimizing downtime for maintenance and maximizing productivity. Thermatool has taken their customer’s needs and comments into account and improved upon this series with what we have learned. The updated controls with touch screen input are very easy to operate, only requiring the operator to enter material height, cut length and then start the cycle allowing for ‘Operator Free’ cutting. Coolant filtration is offered as standard, we offer optional specialty clamp jig design and universal clamping. Whether you are looking for a complete sawing solution with automation or just a robust saw to speed up your cutting process let Savage Saws help you Get the Edge.
- Cut lab samples within a production environment, or with large or irregular work pieces.
- Precision cut up to an 8” (200 mm) high by 24” (600 mm) long work piece.
- Variable blade speed.
- Make cuts 10 times faster than other lab saws available on the market today.
- Programmable step cutting available on selected machines.
- Custom clamping and jig designs
|Horsepower||20 Hp (15 kW)||50 Hp (38 kW)|
|Capacity – Height||6″ (150 mm)||8″ (200 mm)|
|Capacity – Length||12″ (300 mm)||24″ (600 mm)|
|Blade Diameter||20″ (500 mm)||26″ (660 mm)|
|Rate of Cut||1/2 in2/sec||1/2 in2/sec|
|Spindle Speed||6000-8000 SFPM||6000-8000 SFPM|
|Spindle Feed||Acme Screw||Acme Screw|
|Spindle Drive||Kevlar Belt||Kevlar Belt|
